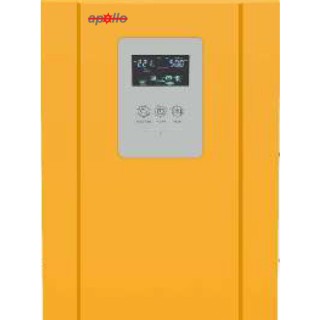

APOLLO PURE SINEWAVE IPS CUM UPS
Apollo H Series
Technical
Specifications |
|||||||
|
Model |
H600 |
H1000 |
H2000 |
H2200 |
H3000 |
H3500 |
|
|
Capacity |
600VA |
1000VA |
2000VA |
2200VA |
3000VA |
3500VA |
|
|
Input |
Voltage Range |
120-300 ± 5% |
|||||
|
Frequency |
60Hz / 50Hz |
||||||
|
Output |
Voltage |
220Vac ± 5-10% |
|||||
|
Voltage Regulation (AC
Mode) |
220Vac ±1% |
||||||
|
Voltage Regulation (Battery Mode) |
220Vac ±1% |
||||||
|
Frequency Regulation (Battery
Mode) |
±0.1Hz |
||||||
|
Power Factor |
0.8 |
||||||
|
Waveform |
Pure sine wave |
||||||
|
Output power |
480W |
800W |
1600W |
1600W |
2400W |
2800W |
|
|
Battery |
Battery Voltage |
12Vdc |
12Vdc |
24Vdc |
24Vdc |
24Vdc |
24Vdc |
|
Battery Time (at full load) |
Long time available |
||||||
|
Max. Charging Current (4 Steps selectable) |
10-50 Amp |
||||||
|
Dimension (WxHxD)mm |
117x152x315 |
222*491*440 |
|||||
|
Protection |
Overload, short-circuit
protection Over-temperature protection Low battery protection Over voltage, Low voltage
protection |
||||||
|
Environment |
Relative Humidity |
0-95% non-condensing |
|||||
|
Operation Temperature |
0-40° |
||||||
|
Audible Noise |
Less than 50dBA (at 1M) |
||||||
|
**
Customized different specifications are available (if required) All
specifications mentioned above are subject to change without prior notice. |
