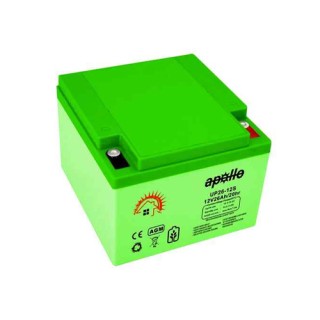

Apollo 12V-26Ah AGM Battery

Battery Model

• Nominal Voltage 12V
• Rated Capacity (20 Hour Rate) 26Ah
• Cells Per Battery 6

Dimension

• 175mm X 166mm X 126mm X 126mm

Approx Weight

• 7.40kg (16.31lbs) ± 3%

Capacity @ 25℃ ( 77 O F )

• 20 Hour Rate(1.34A,10.5V) : 26.8Ah
• 10 Hour Rate(2.60A,10.5V) : 26Ah
• 5 Hour Rate(4.449A,10.5V) : 22.245Ah
• 1 Hour Rate(14.4A,9.6V) : 14.4Ah

Max. Discharge Current

• 360A (5 Sec.)

Internal Resistance

• Full Charged At 25℃: Approx 13.5mΩ

Capacity Affected By Temp.(20 HR)

• 40℃ (104 O F ) : 102%
• 25℃ (77 O F ) : 100%
• 0℃ (32o F ) : 85%
• -15℃ (5 O F ) : 64%

Self Discharge @25℃ (77 O F)

• After 3 Months Storage : 91%
• After 6 Months Storage : 82%
• After 12 Months Storage : 64%

Charge Method @25℃ (77 O F)

• Cycle Use : 14.4-14.7V (Initial Charging Current Less Than 3.6A)
• Float Use : 13.50-13.80V
